Paper Mill Cranes for Reliable Maintenance and Roll Handling
Guanhui specializes in synchronized Double and Triple Trolley overhead cranes equipped with high-performance SWF hoisting units—delivering zero-tilt roll turning, micro-speed positioning, and reliable wet-end to dry-end maintenance.
Paper Machine Maintenance | Roll Handling | Continuous Operation
Crane Solutions Across the Paper Production Process
From equipment maintenance to finished roll storage, each lifting task requires the right crane structure, duty class and control method.

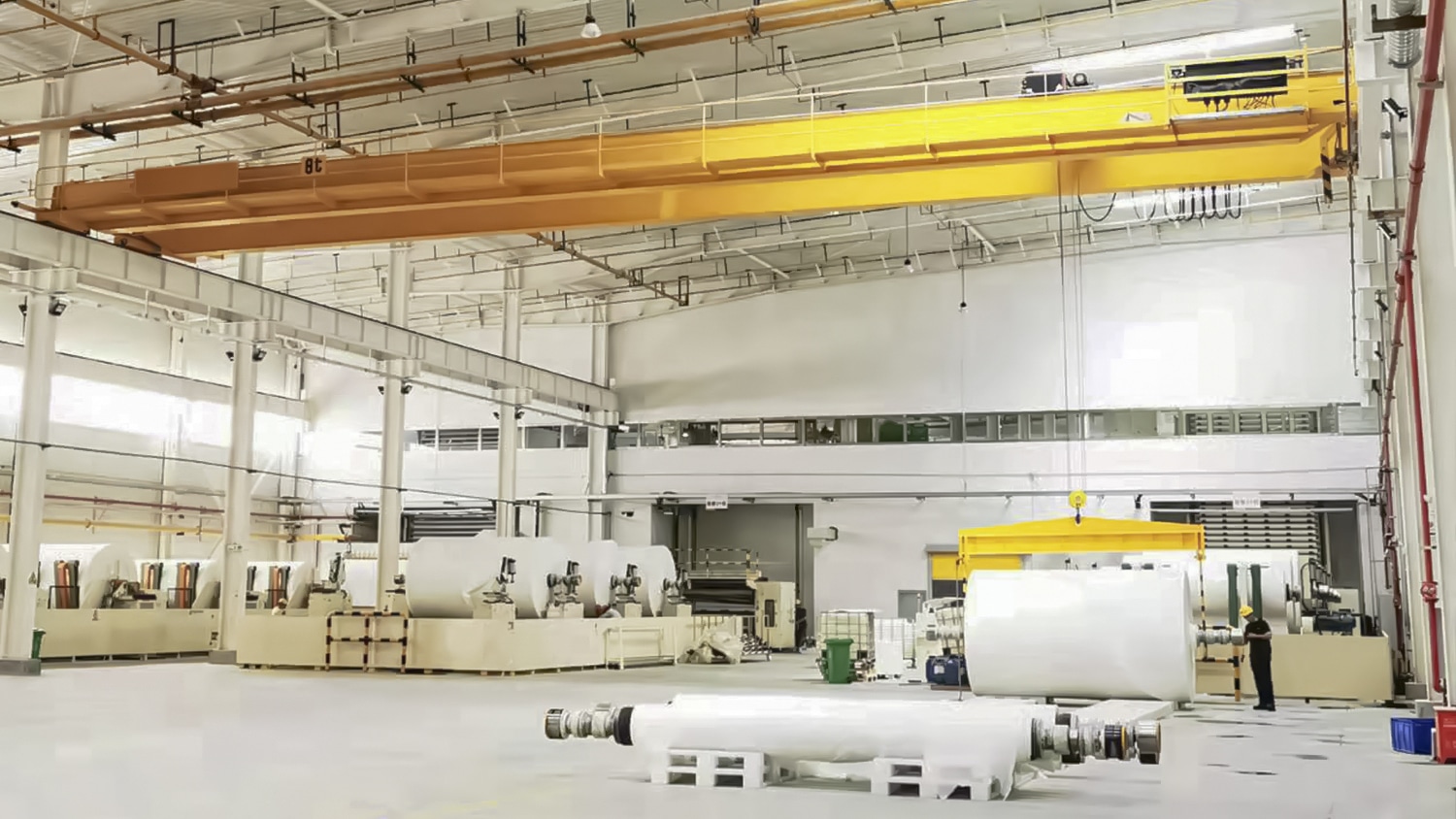

Paper Machine Maintenance Cranes
Featuring Double and Triple Trolley configurations for synchronized, zero-tilt lifting of long paper machine rolls and drying cylinders. Powered by compact SWF hoists for millimeter-accurate placement in restricted spaces.
Parent Roll & Reel Handling Cranes
Heavy-duty multi-trolley systems designed for smooth transfer of massive parent reels between the paper machine, winder, and intermediate storage—eliminating core damage and roll swing.

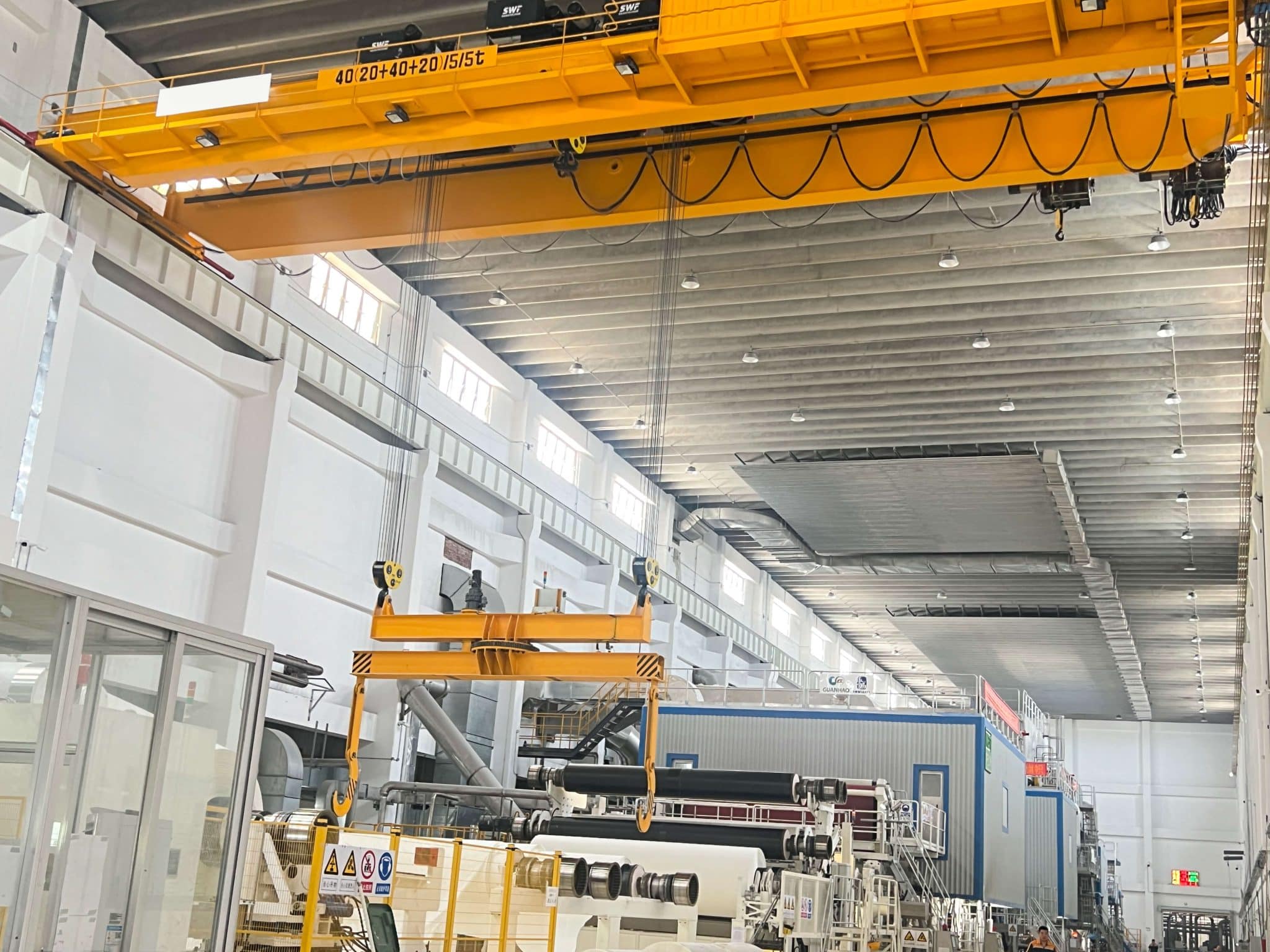

Finished Roll Handling Systems
High-throughput overhead cranes equipped with mechanical or hydraulic roll clamps and VFD control, ensuring rapid, surface-damage-free transfer to wrapping and dispatch zones.
Pulp Preparation & Wet-End Cranes
Engineered specifically for harsh, humid, and corrosive pulping environments. Built with IP66-protected SWF hoisting units, anti-condensation heaters, and chemical-resistant coatings for dependable maintenance of pumps, refiners, and screens.
High-Density Roll Warehouse Cranes
High-speed, heavy-duty (M6–M8) crane systems engineered for vertical high-density roll stacking and rapid retrieval. Seamlessly compatible with vacuum grippers and mechanical clamps to maximize warehouse capacity without edge damage.
Smart Automated Roll Handling & WMS
Turnkey 24/7 unmanned crane automation fully integrated with your mill's Warehouse Management System (WMS). Powered by smart SWF inverter drives, active anti-sway, and target positioning for continuous, high-throughput dispatch.
Why Paper Mill Lifting Requires Application-Specific Engineering
Continuous production, sensitive paper rolls and demanding mill conditions require more than a standard overhead crane.
Zero-Tolerance for Unplanned Stops
Paper mills run 24/7, where every hour of downtime costs thousands. We engineer heavy-duty M6–M8 crane systems with condition monitoring, redundant braking, and overload safeguards to ensure relentless, continuous operation.
Long Rolls & Deflection Risks
Long paper machine rolls and cylinders easily suffer from deflection or bearing damage if lifted unevenly. Our synchronized Double/Triple Trolleys eliminate mechanical stress through independent or tandem lifting modes.
Severe Humidity, Heat & Corrosion
Wet-end operations generate intense heat and moisture. We integrate our purpose-built Guanhui hoisting mechanisms with IP66 protection, anti-condensation heaters, and corrosion-resistant coatings to thrive in severe mill climates.
Restricted Maintenance Windows
During critical mill shutdowns, fast and safe component exchange is vital. Our stepless VFD controls and micro-speed SWF hoists deliver millimeter-accurate positioning—slashing roll and cylinder replacement times by up to 30%.
Paper Machine Maintenance Cranes Designed Around Service Access
Maintaining modern, wide-span paper machines requires specialized multi-trolley architecture. Guanhui combines custom bridge structures with high-precision inverter hoists to execute complex roll turning and tandem lifting:
- Synchronized Triple Trolley Control: Two main trolleys plus an auxiliary center trolley for turning heavy rolls 90° or 180° safely in the air.
- Main & Auxiliary Hoist Architecture: Engineered with high-capacity main trolleys for heavy cylinder lifts, combined with auxiliary side hoists (e.g., 5t/10t) along the girders for fast, flexible maintenance of smaller mill components.
- Tandem & Independent Operation: Switch seamlessly between single-trolley independent lifts and multi-trolley synchronized lifting via radio remote.
- Stepless Microspeed Positioning: Inverter-driven (VFD) controls allowing millimeter-level accuracy during cylinder and bearing alignment.
- Climate-Controlled Electrical Cabinets: Industrial cabinet air conditioners installed on all electrical control panels—regulating temperature and humidity to protect sensitive VFDs and PLCs from severe wet-end heat and moisture.
- Redundant Safety Architecture: Dual braking systems, electronic overload protection, and continuous condition monitoring.

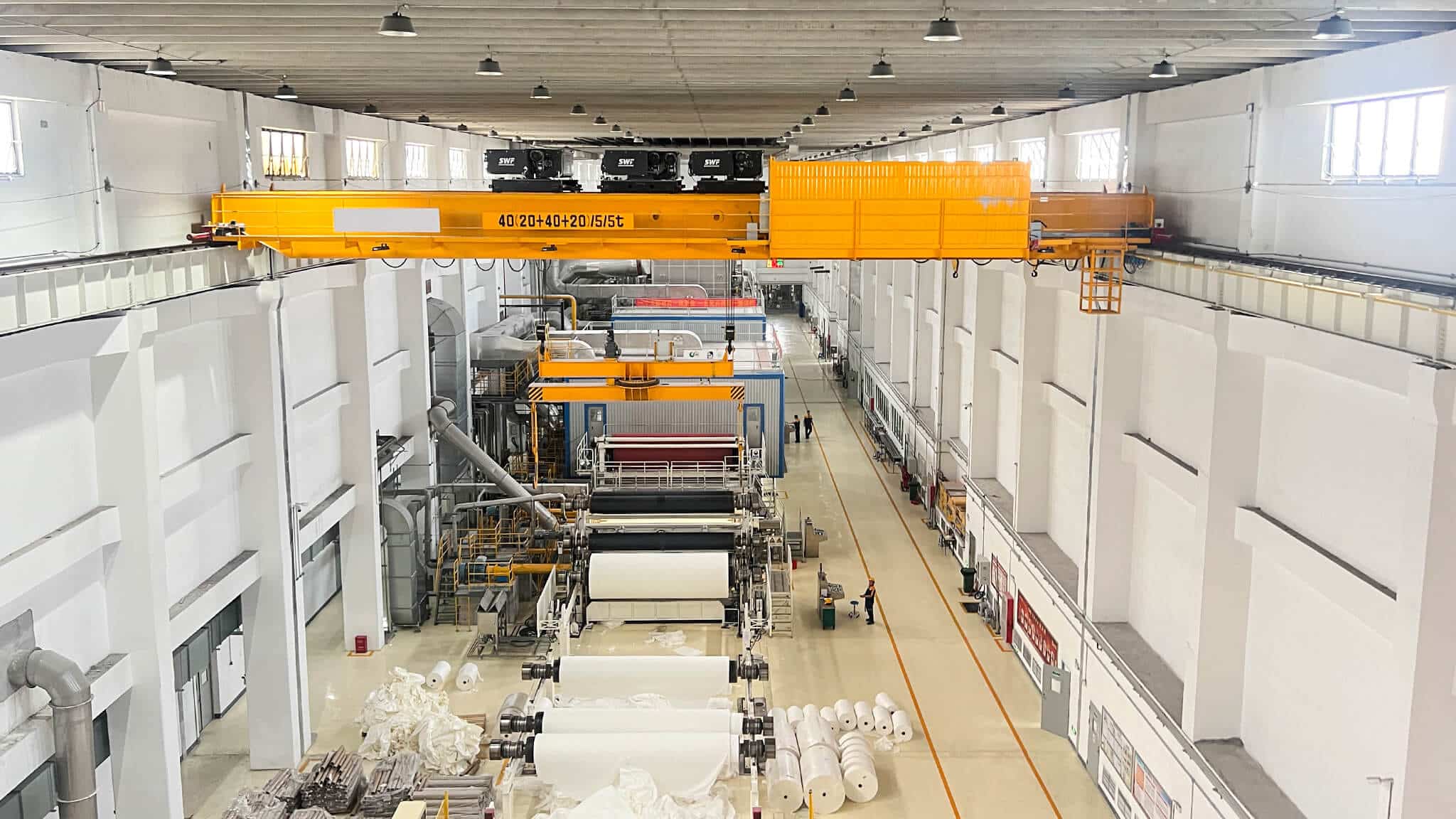

Stable Roll Transfer from Production to Storage
Paper rolls can be heavy, large in diameter and sensitive to surface damage. The crane, lifting attachment and control system should be designed together to support safe transfer without unnecessary swinging, impact or roll deformation.
- Parent reel transfer to rewinders and storage areas
- Finished roll handling for wrapping and dispatch
- Roll clamps, lifting beams or application-specific attachments
- Variable-frequency travel and smooth acceleration
- Optional anti-sway and position control
- Manual, semi-automatic or automated operation
Why Choose Guanhui for Paper Mill Crane Projects
3D Layout & Clearance Engineering
Engineered directly from your mill's CAD/BIM drawings. We precisely calculate bridge clearances, hook approaches, and removal paths to navigate around towering paper machines, steam hoods, and piping.
Synchronized Multi-Trolley Expertise
We specialize in configuring heavy-duty Double and Triple Trolley cranes for wide-span paper machines. Powered by precision inverter-driven hoists and advanced PLC synchronization, our systems ensure zero load tilt and effortless mid-air roll turning.
Smart VFD & Anti-Sway Control
Powered by stepless variable-frequency drives (VFD) and active anti-sway technology. Enjoy smooth acceleration, zero load pendulum, and millimeter-accurate micro-speed positioning for delicate roll placement.
Turnkey Global Project Execution
From custom structural fabrication to on-site commissioning, load testing, and operator training. We deliver end-to-end project compliance (ISO/CE), supported by long-term spare parts and after-sales service.
Request a Custom Paper Mill Crane Proposal
Share your lifting requirements and mill layout. Our engineers will review the application and recommend a suitable crane configuration.
Paper Mill Crane Systems FAQ
The additional investment should deliver measurable value in the conditions that matter to a paper mill: higher equipment availability, controlled paper roll handling, easier maintenance, suitable protection for humid or dusty areas, and dependable technical and spare-parts support.
The right comparison is not simply the crane purchase price. It is the total cost of unplanned downtime, damaged rolls, maintenance, energy use and equipment ownership over the crane’s working life.
Paper mills may use wet-end maintenance cranes, dry-end or winder cranes, parent-roll handling cranes, paper roll storage cranes, workshop cranes and general maintenance cranes.
The correct configuration depends on the task. A crane used occasionally for paper machine maintenance has different duty, positioning and lifting requirements from a process crane that repeatedly moves parent rolls or supports an automated warehouse.
A crane specified for the actual load spectrum, operating frequency, duty class and environment can reduce premature wear and the risk of unexpected breakdowns. Accessible components, condition monitoring and planned preventive maintenance can also make service requirements more predictable.
For maintenance work, suitable lifting capacity, hook coverage and precise low-speed control help crews remove and reinstall rolls, cylinders and other paper machine components efficiently during scheduled shutdowns.
The design review should include the required capacity, span, lifting height, hook approaches, operating frequency, load spectrum, lifting cycles, crane travel distance and required positioning accuracy.
We also review the paper machine layout, maintenance routes, roll dimensions and weights, lifting points, building structure, ambient temperature, humidity, dust, corrosive exposure, control method, power supply and applicable local standards. For existing mills, runway condition and available installation space should also be verified.
Roll damage can be reduced by selecting the correct lifting attachment and controlling acceleration, deceleration, sway, positioning and gripping force. Variable-speed drives, low-speed positioning and anti-sway control can help operators place heavy rolls more smoothly.
The lifting method must match the roll condition, dimensions, weight, orientation, surface sensitivity and packaging. The complete handling process should be reviewed because damage can also occur during pickup, transfer, stacking or placement at the winder or cutter.
Yes, provided the crane is engineered for the actual environment. The specification may include suitable corrosion protection, protected electrical equipment, appropriate enclosure ratings, sealed or protected components, suitable brakes and motors, and materials selected for the ambient temperature and humidity.
Wet-end, dry-end and roll storage areas should be evaluated separately. Moisture, heat, paper dust, chemicals and cleaning practices can differ significantly across the mill, so one standard protection package may not be suitable for every area.
Depending on the application, useful features may include overload protection, upper and lower limit switches, anti-sway control, variable-speed drives, micro-speed positioning, controlled acceleration, warning devices and lifting-attachment status monitoring.
For tandem or multi-hoist lifting, synchronized control and load monitoring may be required. Safe operation also depends on risk assessment, correct installation, regular inspection, preventive maintenance and trained operators.
Automation may be suitable where rolls are handled frequently, storage locations are standardized and the production or warehouse system can provide reliable roll data and movement instructions.
An automated system can support repeatable positioning, inventory tracking and efficient use of storage space. However, the business case should be evaluated against throughput, roll variety, packaging condition, system integration, redundancy requirements and the mill’s maintenance capabilities.
