Factory Crane Layout Solutions That Reduce Waiting Time and Improve Material Flow

We plan overhead cranes, workstation cranes and jib cranes as one vertical material handling system to reduce waiting time, improve safety and increase production flow efficiency.

Reduce Crane Waiting Time

Plan lifting resources around real production rhythm.

Improve Material Flow

Reduce repeated transfers and floor congestion.

Support New Plants & Upgrades

Suitable for new factory planning or workshop renovation.

Layout-Based Engineering

Crane coverage, span and lifting height planned together.

Build a Vertical Material Handling System, Not Just a Crane

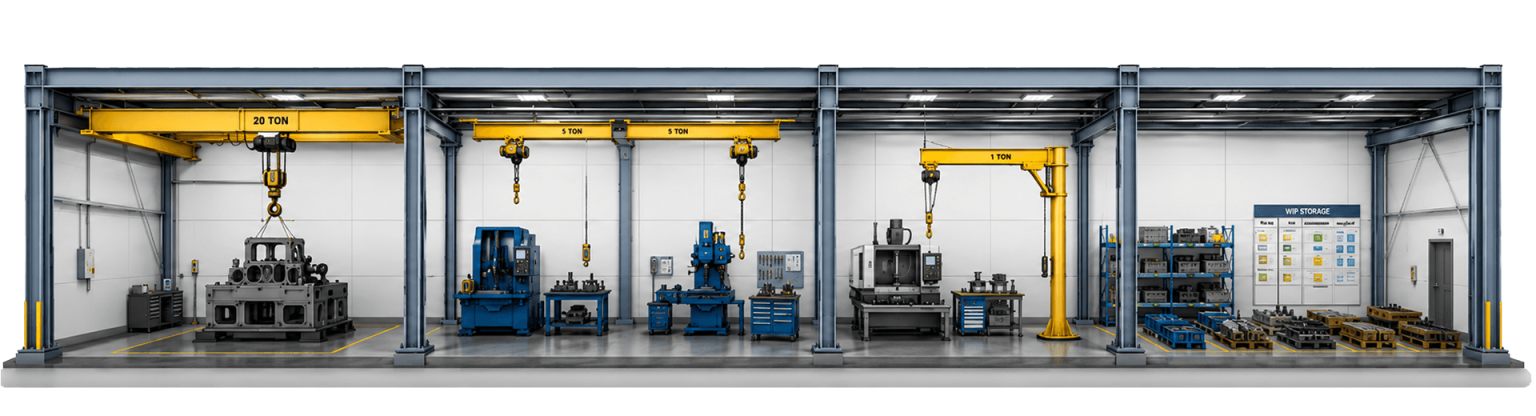

A good factory layout combines the main overhead crane with local lifting equipment, so every lifting task uses the right tool at the right workstation.

Overhead Crane

For heavy loads and long-travel transfer across the workshop.

Workstation Crane / Light Crane

For high-frequency local lifting without occupying the main crane.

Jib Crane

For point-to-point lifting, machine loading and mold change.

Optimized WIP Area

Clear material flow and dedicated staging areas reduce floor congestion.

Poor Crane Planning Becomes Long-Term Operating Cost

Crane planning should not be an afterthought. Wrong coverage, shared lifting bottlenecks and poor workstation lifting design become hidden costs after production starts.

Good Layout vs. Poor Layout

Good crane layout: short lifting paths, smooth material flow, less waiting, better space utilization and lower operating cost.

Poor crane layout: long travel, more interference, more waiting, congestion and hidden losses.

How Guanhui Plans Crane Systems Around Your Production Flow

From product families to crane coverage and installation support, every step is planned around real production needs.

Analyze Product Families

Understand product types, weights, processes and production rhythm.

Map the Material Flow

Map material routes, workstations and current handling bottlenecks.

Plan Crane Coverage

Design crane coverage zones for efficient lifting with minimal interference.

Match Crane Types

Select the right combination of overhead, workstation and jib cranes.

Support Installation

Support installation, testing and handover for smooth production start-up.

Ideal for New Factory Planning and Workshop Upgrades

A layout-based crane system is suitable when lifting tasks, production flow and floor space all need to work together.

Heavy Equipment Manufacturing

Handle heavy components, large structures and complex assemblies.

Mold Change & Machine Loading

Speed up mold changes and machine loading or unloading safely.

Steel Structure Fabrication

Improve material flow for cutting, welding, drilling and assembly.

Assembly Workshops

Support multi-station assembly with smooth part supply.

FROM WAITING TIME TO SMOOTHER PRODUCTION FLOW

Improve Layout Before Waste Becomes Permanent

By combining main overhead cranes with local lifting equipment, factories can reduce crane interference, improve coverage and create clearer material flow paths.

48%

Handling Efficiency

Example improvement after layout optimization

41%

Faster Changeover

Less waiting during heavy mold or tooling changes

36%

Higher Output per Area

Better use of floor and lifting coverage

Near Zero

Crane Waiting

Target for well-planned lifting resources
