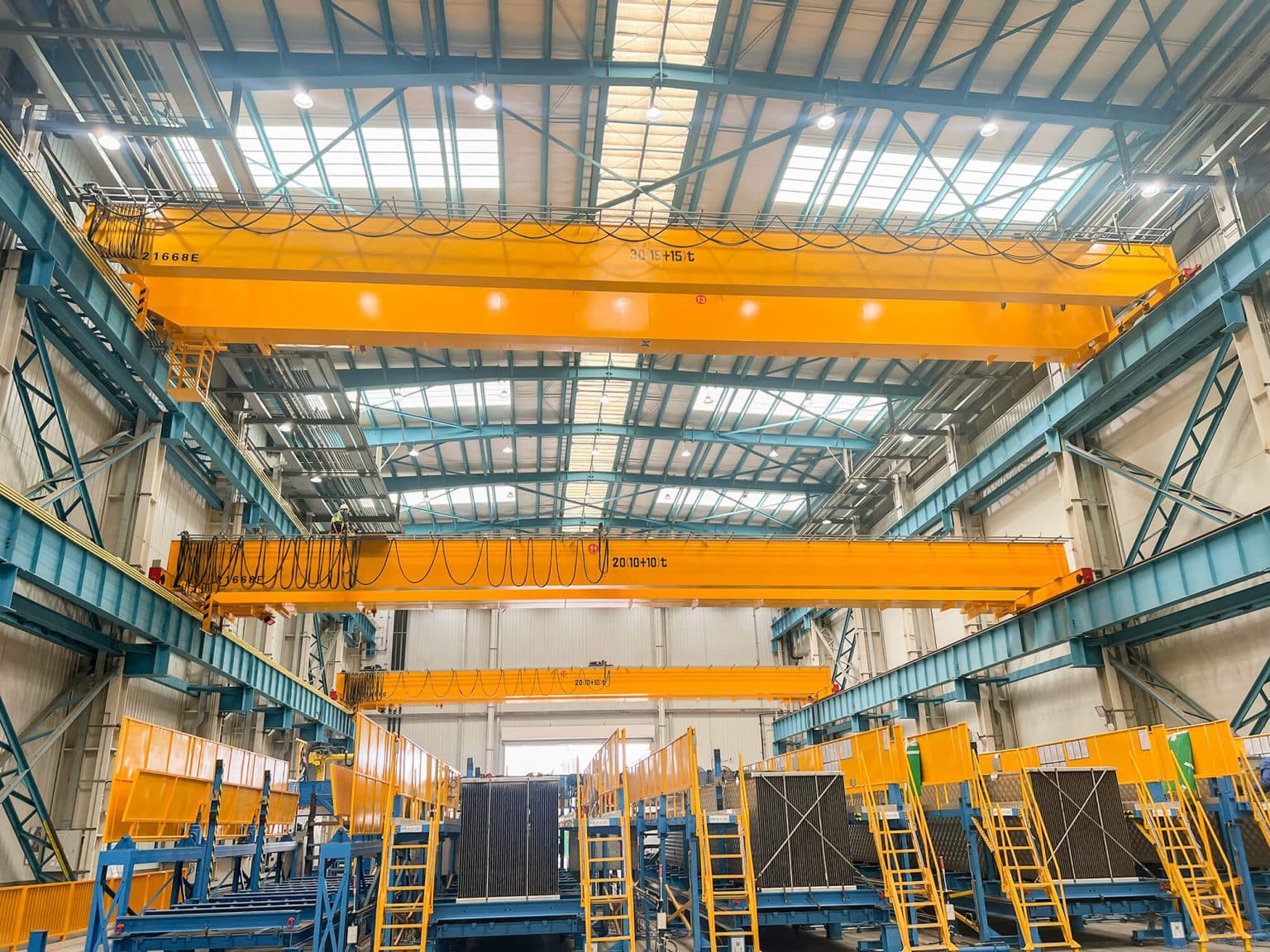

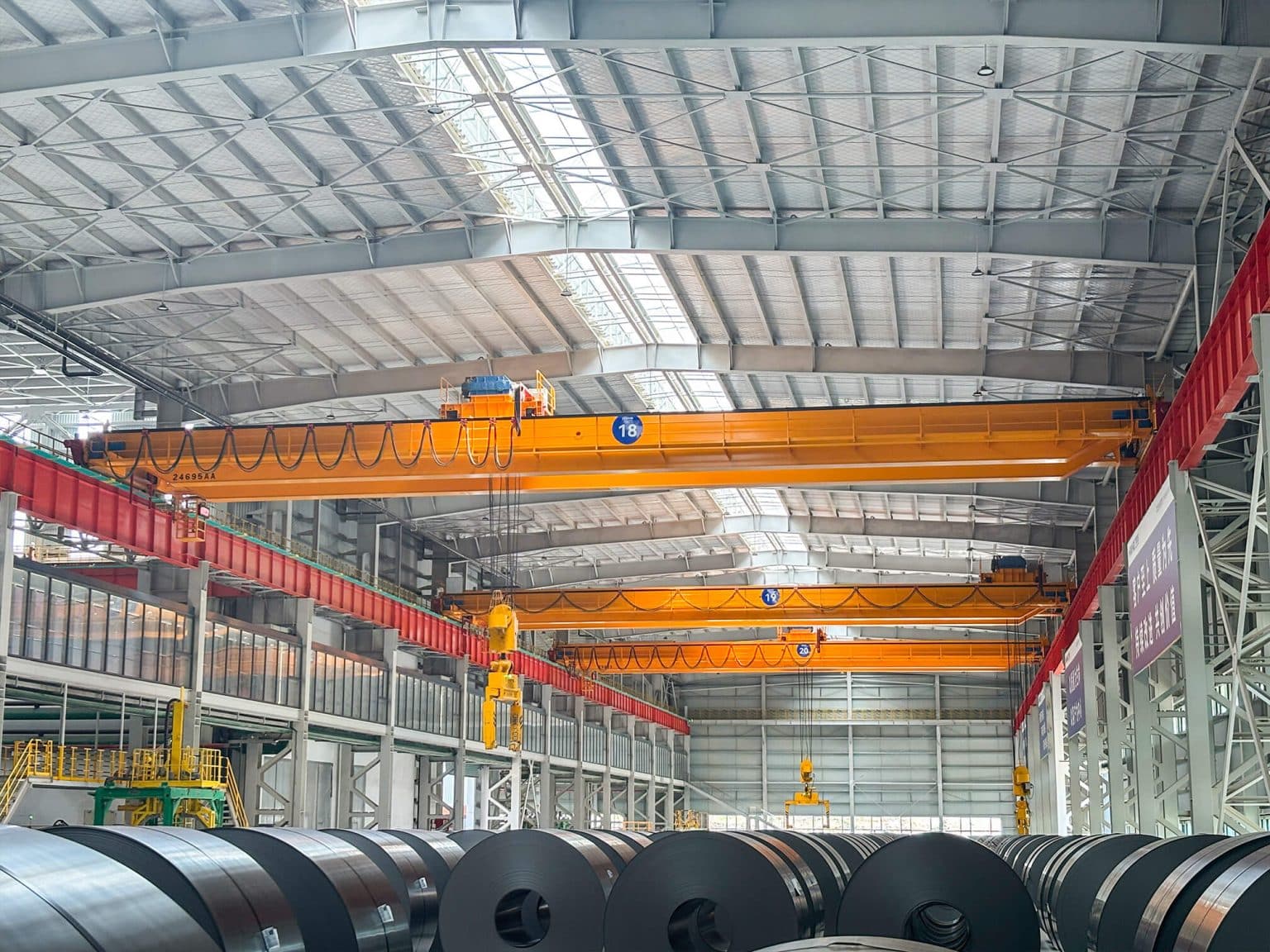

OVERHEAD CRANE CONTROL SOLUTION
Eliminate Load Swing & Mechanical Shock: Precision VFD Control for Overhead Cranes.
Lifting power means nothing without total control. Our inverter-driven (VFD) hoisting and traveling systems deliver stepless speed adjustment, pinpoint load positioning, and significantly lower energy bills—engineered for both new installations and existing crane upgrades.
- Stepless, jerk-free acceleration and deceleration
- Micro-speed control for pinpoint, millimeter-level positioning
- Zero-shock smooth travel: Protects building runways and extends mechanical lifespan by up to 50%.
- Up to 30% reduction in starting current and power consumption
The High Cost of Traditional Contactor Control: Why Rough Crane Movement Damaging Your Bottom Line
When an overhead crane starts, stops, or changes speed too abruptly, it can affect both safety and productivity. These problems are especially noticeable when handling heavy, long, fragile, or high-value loads.
Hazardous Load Sway & Safety Risks
Positioning Blind Spots & Production Delays
Severe Shock Loads & Premature Gearbox Wear
Hard starts and sudden stops can create shock loads on motors, reducers, brakes, wheels, rails, and the crane structure, leading to faster wear over time.
Massive Starting Current Surges & Power Waste
Traditional start-stop control can create high starting current and less optimized motor operation. In frequent lifting, trolley travel, or long travel applications, this may increase electricity consumption and operating cost over time.
Traditional Crane Control vs. VFD Crane Control
For applications requiring smoother movement, accurate positioning, and safer handling, the crane control method can make a major difference in daily operation.
Basic Start and Stop Control
- Violent mechanical jerks during start and stop
- Rigid 1-speed or 2-speed limitations
- Severe load pendulum effect during travel
- Destructive "jogging/plugging" to align loads
- 5x–7x starting current spikes burning contacts
Smooth and Adjustable Crane Movement
- Soft-start & soft-stop: Absorbs mechanical shock to protect factory runways and extend equipment lifespan.
- Infinite speed control: Custom acceleration/deceleration ramps
- Dynamic sway damping: Faster, safer horizontal load cycles
- Micro-speed precision: Easily place molds and dies with zero impact
- Optimized power draw: Lower peak demand and cooler motor operation
Engineered for Control: Tailored VFD Solutions for New Builds & Retrofit Upgrades
Guanhui focuses on practical overhead crane solutions for industrial workshops. We help customers configure cranes based on actual lifting requirements, movement control expectations, safety needs, and long-term operation reliability.
- Custom-Engineered Control Architecture: Purpose-matched VFD sizing for hoisting, cross-travel, and long-travel drives.
- Adaptive Speed Matching: Faster speeds for light/empty hooks to boost cycle times, and slower speeds for heavy loads to ensure safety.
- Maximized Asset Lifespan & Wear Protection: Smooth acceleration and dynamic braking eliminate physical shock, reducing brake pad and wheel flange wear by up to 50%. This smooth operation protects both the crane and your facility's runway structure for years of dependable service.
- Turnkey Retrofit Support: We don't just supply VFD cabinets; we provide comprehensive wiring diagrams and technical guidance to upgrade your existing cranes seamlessly.
Frequently Asked Questions About Crane VFD Control
VFD control uses a variable frequency drive to adjust motor speed during lifting, trolley travel, or long travel. It helps control acceleration, deceleration, and operating speed for smoother crane movement.
VFD control can help reduce load swing by making trolley and bridge travel smoother, especially during starting and stopping. Actual performance also depends on load type, operation method, crane structure, and control settings.
Absolutely. VFD retrofitting is one of the most cost-effective ways to modernize an existing overhead crane. We can upgrade your current contactor-controlled system by replacing the old control cabinet with a custom-engineered VFD panel. This immediately resolves issues like load sway, hard braking, and frequent electrical faults without needing to replace the entire crane structure.
VFD control can be applied to hoisting, trolley travelling, and crane long travelling. The exact configuration depends on your precision requirement, working frequency, safety requirements, and budget.
We need lifting capacity, span, lifting height, travel distance, load type, working frequency, positioning requirement, control method, power supply, and whether it is a new crane or an existing crane upgrade.
Traditional single-speed cranes rely on abrupt, hard-start motor engagements that send violent mechanical shocks through the gears, wheels, and directly into your facility’s runway beams. Guanhui VFD control replaces this with custom-programmed soft acceleration and deceleration ramps. By absorbing load swing and eliminating mechanical jerks, our system significantly reduces wear on brake pads, gearboxes, and motor windings—protecting your factory building structure and extending the overall lifespan of your lifting equipment by years.
Yes, significantly. Traditional across-the-line motor starting draws up to 500% to 700% of the motor’s full-load current, causing massive power spikes. A VFD ramps up the frequency smoothly, keeping the starting current typically below 150%. Additionally, by optimizing motor RPM during lighter moves, a VFD system can reduce total energy consumption by 20% to 30% over standard two-speed control.
Need Smoother and More Precise Overhead Crane Movement?
What You Get in Your Free Engineering Evaluation:
- Drive Sizing & Harmonic Analysis: Precise VFD matching for your hoist and travel motors.
- Custom Ramp-Time Calculation: Tailored acceleration/deceleration curves to eliminate load swing in your specific workspace.
- Control Architecture Audit: Recommendation between Pendant, Radio Remote, or Cabin control integration.
- ROI & Electricity Savings Estimate: Projected power reductions based on your duty cycle and working frequency.
- Step-by-Step Retrofit Roadmap: Clear technical guidance on converting your existing relay/contactor setup to VFD.
