In a heavy equipment overhaul plant or shipyard, the main overhead crane often becomes a shared resource for every lifting task. Large assemblies, steel plates, tools, spare parts, and workstation components may all compete for the same crane. This creates waiting time, unnecessary crane travel, and inefficient use of heavy-duty equipment.
A multi-tier crane layout addresses this problem by separating lifting tasks across different working levels. A primary double girder overhead crane can handle heavy loads and long-distance transfers at the upper level, while lower-level equipment such as semi-gantry cranes, workstation jib cranes, or KBK light crane systems manages frequent local movements.
The objective is not simply to install more cranes. It is to match each lifting task with the appropriate equipment, improve workshop material flow, and create a safer and more predictable operating environment.

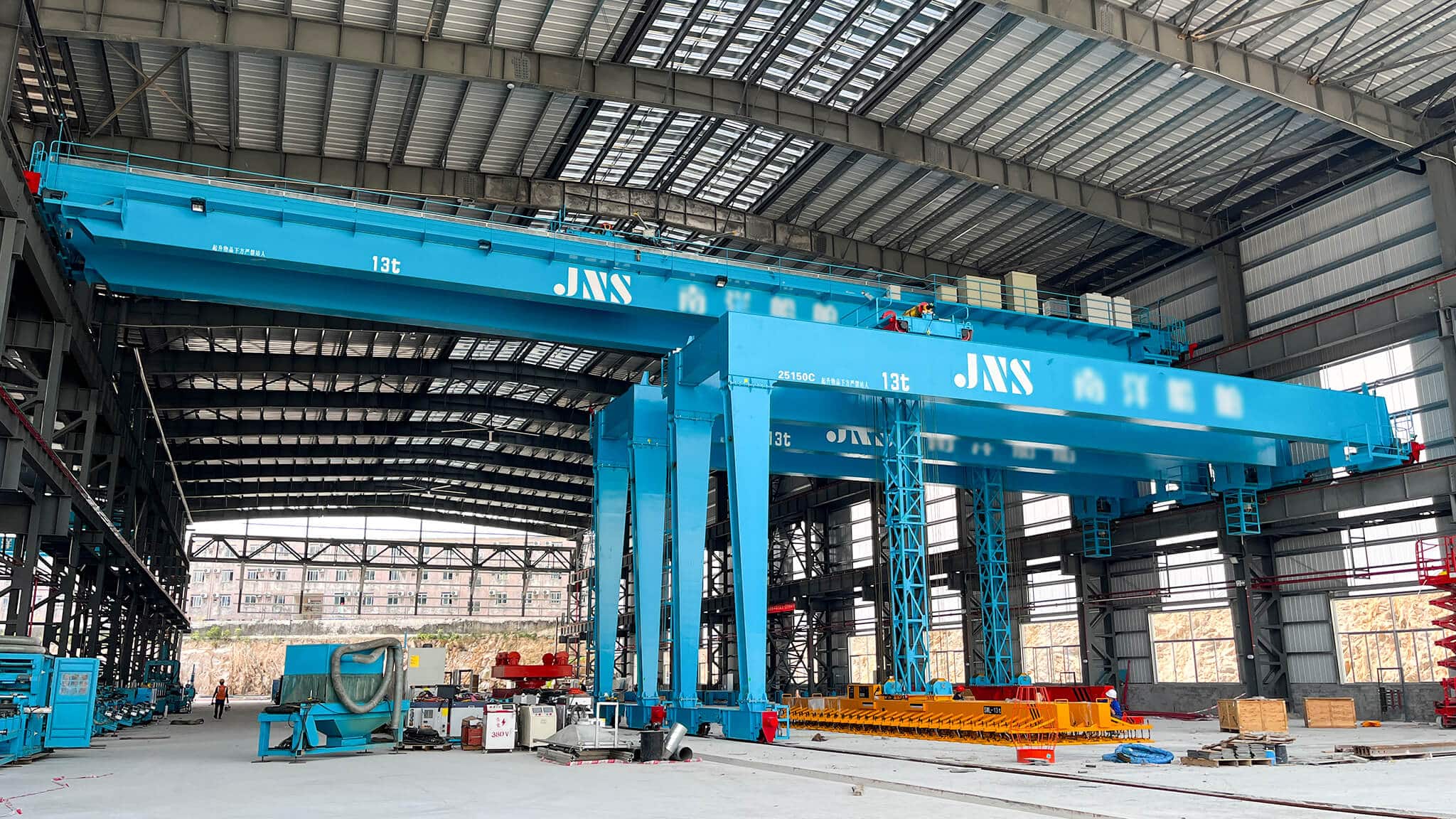

What Is a Multi-Tier Crane Layout?
A multi-tier crane layout is a planned material handling arrangement in which two or more crane operating levels serve different areas, loads, or production tasks within the same workshop.
A typical arrangement may include:
- Upper level: A double girder overhead crane for heavy lifting and broad workshop coverage
- Lower level: A semi-gantry crane, workstation jib crane, or KBK light crane system for local material handling
- Dedicated lifting equipment: Open winch systems, spreader beams, plate lifting attachments, or other task-specific devices
- Control and safety layer: Anti-collision detection, operating-zone restrictions, interference interlocks, and digital status monitoring
This approach is especially useful when a factory already has a high-level crane but still experiences congestion at repair bays, assembly stations, or plate preparation areas.
A successful layout begins with the production process. Engineers should study where materials enter the facility, how they move between workstations, which tasks require heavy lifting, and which movements occur repeatedly throughout the day.
Why Single-Level Crane Systems Often Create Bottlenecks
A single large crane may appear to offer complete coverage, but it can become inefficient when every department depends on it.
Common causes of bottlenecks include:
The main crane handles too many light-duty tasks.
Small components and tools may require only a limited lifting range, but they still occupy the main crane.Different departments share one runway.
A repair operation may need the crane at the same time as a steel plate handling or assembly operation.Large cranes perform short, repetitive movements.
Frequent low-distance travel can result in “big crane, small task” operation.The workshop’s vertical space is underused.
The area below the main runway may be suitable for a separate lower-level system, subject to structural and safety verification.Production routes are not reflected in the crane layout.
A crane may technically reach an area but still create inefficient cross-traffic between workstations.
A multi-tier configuration can separate heavy transfers from repetitive workstation handling. The main crane remains available for major lifts, while lower-level equipment supports local operations.
How the Primary and Auxiliary Crane Levels Work Together
The upper and lower crane levels should not be viewed as completely independent systems. They should be planned together according to load characteristics, travel paths, operating frequency, and potential interference zones.
| Material handling task | Recommended equipment | Typical reason |
|---|---|---|
| Heavy equipment overhaul | Double girder overhead crane | Suitable for major loads and wide-area coverage |
| Long-distance transfer across a workshop | Double girder overhead crane | Provides access along the main runway |
| Shipyard plate handling | Heavy-duty overhead or semi-gantry crane with dedicated attachment | Supports controlled handling of large plates |
| Local component movement | Semi-gantry crane or workstation jib crane | Serves a defined bay or workstation |
| Repetitive assembly tasks | KBK light crane system or jib crane | Supports frequent, short-distance handling |
| Tool and spare-part lifting | Workstation jib crane or light crane system | Keeps small tasks away from the main crane |
| Restricted production area | Semi-gantry crane | Can be arranged for a dedicated working zone |
The actual selection must be based on rated capacity, actual lifted load, lifting attachments, duty requirements, available space, structural conditions, and applicable local standards.
Comparing Lower-Level Crane Options
Semi-Gantry Cranes
A semi-gantry crane can be considered when a lower-level crane needs to cover a relatively long working area but a complete overhead runway is not practical or available.
Potential applications include:
- Dedicated repair bays
- Shipyard plate handling areas
- Long assembly or maintenance lines
- Areas beneath or beside an existing overhead crane
- Zones requiring separation from the main crane route
The design must account for ground rails, wheel loads, floor or foundation conditions, support arrangements, and vehicle or personnel access. A semi-gantry crane should not be assumed to fit beneath an existing overhead crane without a project-specific layout and clearance review.
Workstation Jib Cranes
Workstation jib cranes are suitable for localized lifting tasks, such as:
- Positioning motors, pumps, and gearboxes
- Handling tools and maintenance components
- Supporting assembly benches
- Loading or unloading a defined workstation
Their main advantage is focused coverage. They can reduce unnecessary movement of the main crane, but their outreach, lifting height, foundation, and support structure must match the actual work area.
KBK Light Crane Systems
KBK light crane systems are often considered for flexible workstation material flow. They may serve several nearby stations and support repetitive handling of lighter components.
Important design considerations include:
- Required load capacity
- Track configuration
- Number and location of workstations
- Manual or powered travel
- Vertical clearance
- Duty cycle
- Future changes to the production layout
A KBK system is not a substitute for a heavy-duty crane when the application involves large assemblies, high loads, or demanding lifting conditions.
Application Example: Shipyard Plate Handling and Overhaul Operations
A shipyard may need to move steel plates through cutting, preparation, welding, assembly, and maintenance areas. At the same time, other teams may be repairing machinery or positioning components inside nearby work bays.
In this situation, a primary crane can serve heavier transfers across the main workshop, while a dedicated lower-level system handles local plate or component movements. The separation can reduce competition for the main crane and make the material flow easier to organize.

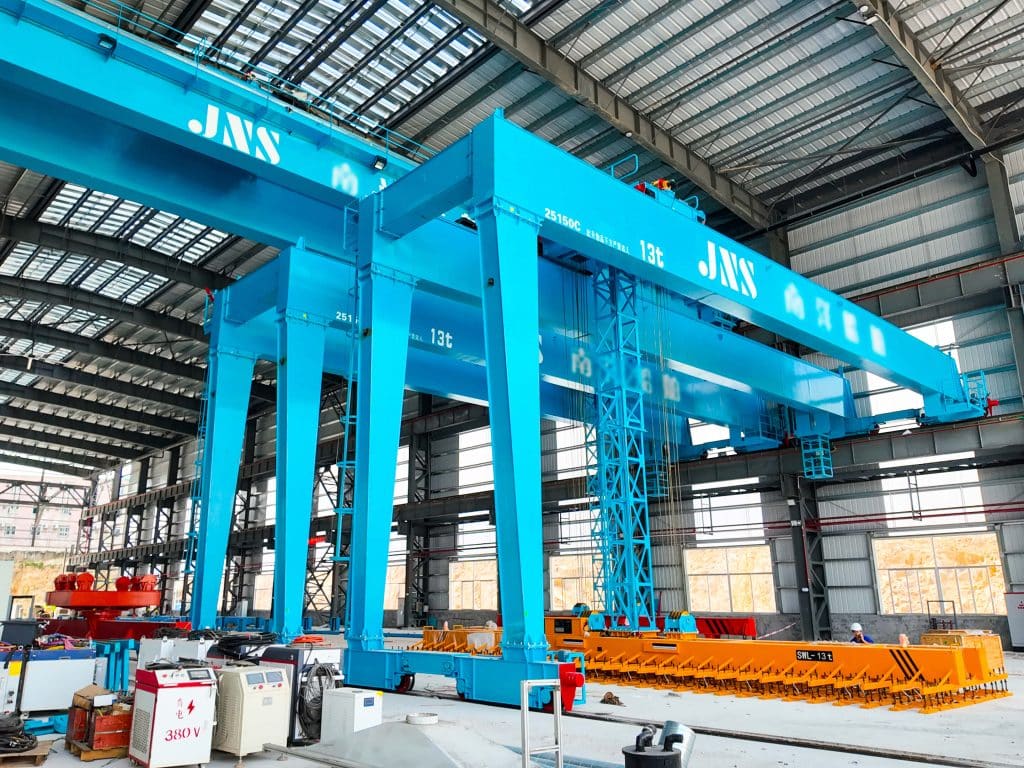

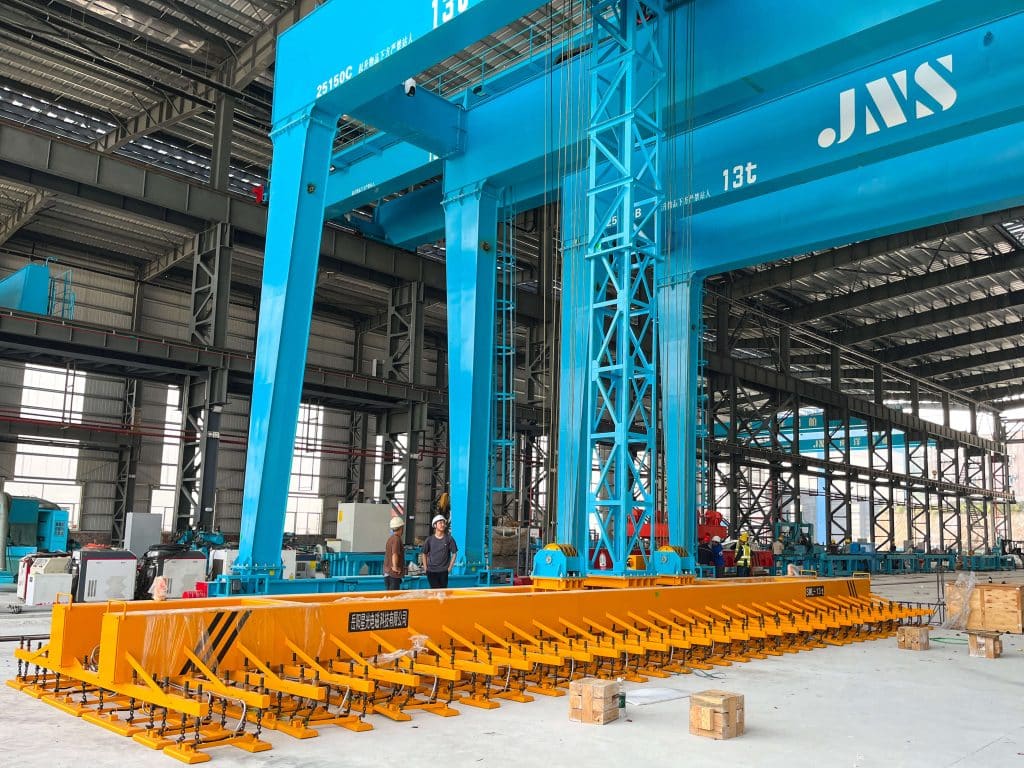

Guanhui Crane has a referenced shipyard project involving two 13-ton double-girder semi-gantry cranes equipped with open winches and dedicated steel plate lifting attachments. This type of configuration illustrates how crane design can be matched to a specific handling process rather than based only on a general capacity rating.
The actual crane type, span, lifting height, attachment, and duty requirements must be determined from the plate dimensions, load distribution, lifting points, travel route, and site conditions.
Smart Anti-Collision and Digital Monitoring
When two crane operating levels share the same workshop, safety planning must be integrated into the overall system design.
A smart anti-collision safety system may be configured around project requirements such as:
- Detection of approaching cranes or equipment
- Defined operating zones
- Speed limitation or controlled stopping
- Interference prevention between crane systems
- Area-based electrical interlocking
- Operator warnings and alarm signals
Microwave or infrared detection technologies may be considered for zone protection, depending on the site layout and control requirements. Their final arrangement should be determined through a project-specific electrical and control review.
Anti-collision equipment should not be treated as an isolated accessory. Its detection logic, stopping or interlocking behavior, control authority, and emergency procedures should be coordinated with the entire crane control system.
Common Planning Mistakes
1. Selecting capacity from the material weight alone
The lifting attachment and other suspended components also affect the required capacity. Buyers should provide complete information about the load and lifting method.
2. Adding a lower runway without checking the building structure
Existing columns, beams, foundations, and connection points may not be designed for additional crane loads. Structural verification is essential.
3. Ignoring vertical clearance
The hook approach, trolley envelope, maintenance space, and distance between crane levels must be checked together.
4. Using the main crane for every task
A heavy-duty overhead crane may be technically capable of handling small components, but that does not make it the most efficient choice for repetitive workstation work.
5. Treating anti-collision protection as an afterthought
Detection zones and electrical interlocks should be included during the layout and control-system design stage.
6. Focusing only on initial equipment price
Installation, structural modification, power distribution, lifting attachments, maintenance access, spare parts, and potential production downtime all affect total cost of ownership.
Why Work With Guanhui Crane?
A multi-tier crane layout requires more than selecting individual lifting machines. It requires coordination between production needs, workshop geometry, load-handling methods, structural conditions, and operating controls.
Guanhui Crane can discuss project requirements around:
- Matching the primary overhead crane and lower-level equipment to the production process
- Planning crane levels according to material routes and workstation requirements
- Considering double girder overhead cranes and semi-gantry cranes for different handling zones
- Configuring specialized load-handling equipment, such as open winch systems and dedicated steel plate lifting attachments
- Reviewing the feasibility of adding lower-level operating tracks within an existing workshop
- Discussing anti-collision zone protection and interference interlocking
For an initial engineering discussion, provide the required capacity, span, lifting height, working frequency, load details, facility drawings, power supply, operating environment, project location, and applicable standards.
Frequently Asked Questions
What is a multi-tier crane layout?
It is a crane arrangement with separate operating levels that divide heavy lifting, local handling, and workstation tasks according to the production process.
Can a semi-gantry crane operate below an existing overhead crane?
It may be possible, but the arrangement requires detailed checking of vertical clearance, structural loads, travel envelopes, ground rails, access routes, and anti-collision controls.
When should a double girder overhead crane be used?
A double girder overhead crane is generally considered for heavier loads, wider coverage areas, demanding lifting tasks, or material transfers across a substantial workshop area. The final configuration depends on project requirements.
Are workstation jib cranes suitable for overhaul plants?
They can be suitable for localized tasks such as handling tools, motors, pumps, and maintenance components. They are not intended to replace a heavy-duty crane for large assemblies unless the application has been specifically verified.
What information is needed to design a multi-tier crane layout?
The supplier typically needs load data, lifting frequency, workshop drawings, column spacing, available headroom, travel routes, power conditions, environmental information, and applicable local requirements.
How are crane interference risks managed?
Possible measures include detection zones, alarms, speed control, restricted operating areas, and electrical interlocks. The complete system must be engineered and verified for the actual layout.
Can an existing workshop support a second crane runway?
This depends on the capacity of the columns, beams, foundations, connections, and floor structure. A qualified engineering team must complete the necessary structural calculations before installation.
A multi-tier crane layout can help heavy equipment overhaul plants and shipyards reduce crane waiting, avoid unnecessary use of the main crane, and improve workshop material flow. The typical approach is to assign major lifts and broad-area transfers to a primary double girder overhead crane while using semi-gantry cranes, workstation jib cranes, or KBK light crane systems for localized tasks.
The best layout depends on the production sequence, rated and actual loads, lifting attachments, available headroom, structural capacity, control requirements, and local standards. Contact Guanhui Crane for a custom engineering consultation based on your workshop drawings, load data, lifting height, operating frequency, power supply, environmental conditions, and project location.
