When an aging crane experiences frequent electrical faults, increased maintenance demands, or difficulty supporting additional production shifts, the immediate reaction may be to replace the entire system. However, full replacement is not always the most economical or operationally practical choice.
An overhead crane modernization vs. replacement decision should begin with a structured assessment of the crane structure, mechanical systems, electrical controls, runway, production requirements, and lifecycle cost. This guide explains how to determine whether retaining the existing bridge and upgrading key mechanisms can provide a better return—or whether complete replacement is the more responsible long-term investment.
What Is Overhead Crane Modernization?
Overhead crane modernization is the process of upgrading selected components or systems while retaining serviceable parts of the existing crane. Depending on its condition and future operating requirements, the retained equipment may include the bridge girders, runway beams, rails, or parts of the traveling structure.
A modernization project may include:
- Replacing an obsolete hoist with a heavy-duty wire rope hoist
- Installing new end trucks or travel drives
- Upgrading contactors, relays, wiring, and electrical panels
- Converting fixed-speed motors to Variable Frequency Drive controls
- Adding radio remote control
- Installing updated limit switches and monitoring devices
- Replacing brakes, gearboxes, wheels, or motors
- Modifying operator controls and warning systems
- Correcting runway alignment or power-supply problems
Modernization is different from routine repair. A repair restores a failed component, while modernization is intended to improve reliability, maintainability, control, or suitability for current production demands.
Complete replacement removes the existing crane and installs a newly engineered system. This may also require runway modifications, electrical work, building alterations, testing, commissioning, and a longer production shutdown.
Overhead Crane Modernization vs. Replacement: Key Differences
| Evaluation Area | Modernization | Complete Replacement |
|---|---|---|
| Existing bridge structure | Retained if an engineering assessment confirms suitability | Replaced with a new bridge |
| Initial project scope | Focused on deficient or obsolete systems | Covers the complete crane system |
| Facility disruption | Often lower, depending on access and project complexity | Usually greater because removal and installation are required |
| Engineering flexibility | Limited by the existing structure, geometry, and runway | Greater freedom to specify a new configuration |
| Capacity increase | Possible only after structural and runway verification | Can be designed for new requirements, subject to building limitations |
| Parts standardization | Can introduce current components while retaining some legacy equipment | Provides greater opportunity for complete standardization |
| Remaining structural life | Depends on inspection, fatigue history, and operating conditions | Begins with a newly designed structure |
| Capital expenditure | Often lower, but not in every case | Usually higher due to the broader scope |
| Downtime | Can often be phased around production windows | May require a concentrated outage |
| Best fit | Sound structure with obsolete or unreliable mechanisms and controls | Structurally unsuitable crane or major change in production requirements |
Modernization should not be selected solely because it appears less expensive. If hidden structural damage, severe runway problems, or incompatible legacy systems are discovered, the final cost and outage duration may approach those of replacement.

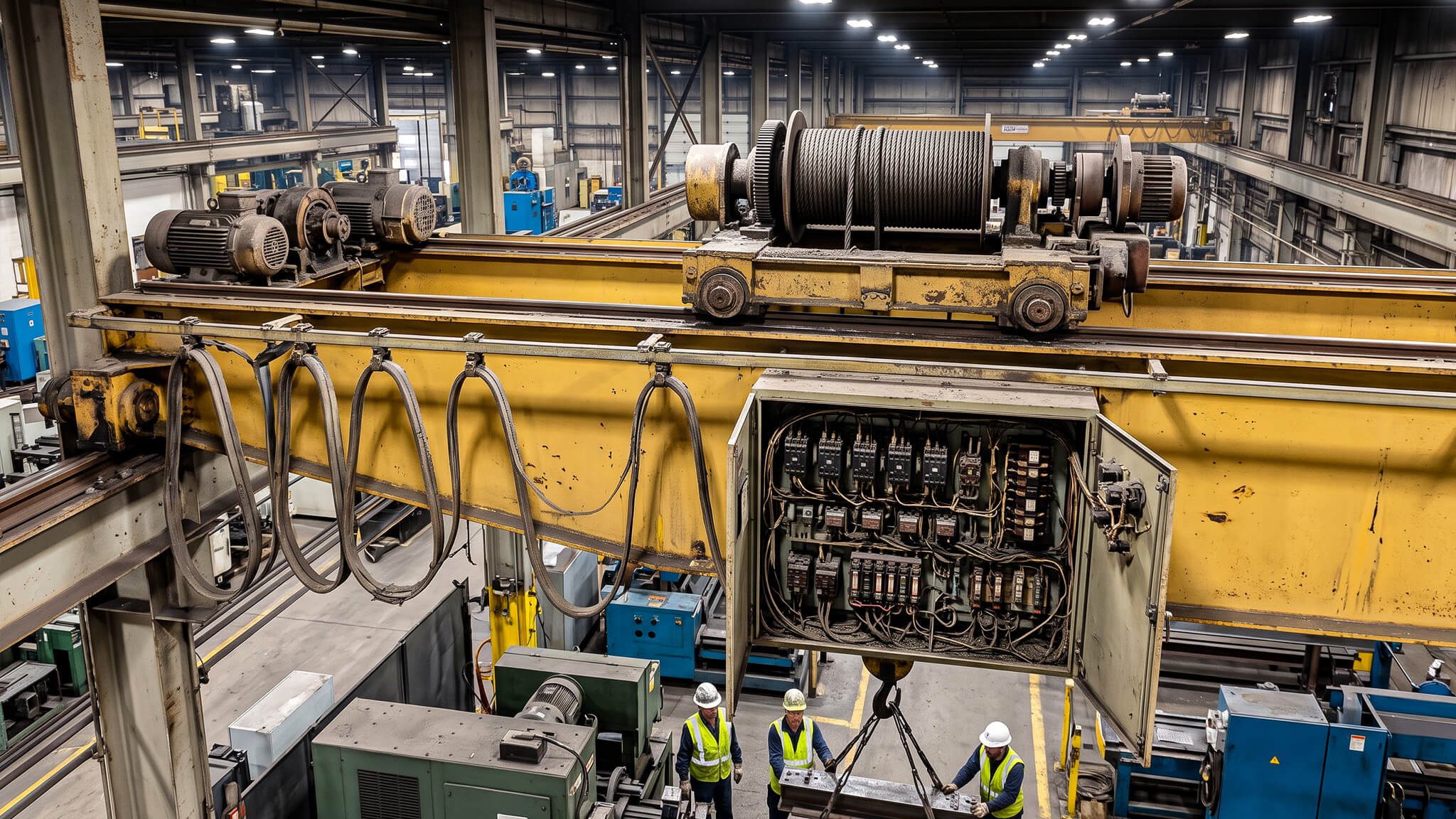

Begin With an Engineering Condition Assessment
A reliable decision requires more than reviewing repair invoices. The crane should be evaluated as an integrated system by qualified personnel familiar with the applicable local regulations and crane standards.
1. Bridge and Supporting Structure
The assessment should consider:
- Girder deformation, corrosion, cracks, and previous repairs
- Evidence of fatigue at welds and connections
- Bridge camber and deflection
- End-carriage and wheel connection areas
- Runway beam, rail, fastener, and support condition
- Wheel alignment, skewing, and abnormal flange wear
- Building loads and runway design limitations
- The crane’s estimated operating history and load spectrum
Visual inspection alone may not be sufficient. A qualified engineer may recommend dimensional checks, alignment surveys, material verification, or nondestructive testing based on the crane’s age, history, and condition.
Important: A capacity increase must never be assumed possible because the existing bridge “looks strong.” The bridge, hoist, end trucks, runway, electrification, and supporting building structure must all be verified for the proposed rated load and duty.
2. Hoist and Mechanical Systems
Inspect the condition and availability of:
- Hoist motors and brakes
- Gearboxes, drums, shafts, and bearings
- Wire ropes, sheaves, hooks, and load blocks
- Bridge and trolley wheels
- Travel drives and couplings
- Lubrication points and guarding
- Replacement parts and technical documentation
Repeated brake adjustments, gearbox leakage, abnormal vibration, rope wear, or unavailable replacement components may support a hoist or drive-system upgrade.
3. Electrical and Control Systems
Electrical obsolescence is a common reason to modernize an otherwise serviceable crane. Review:
- Control panels, contactors, relays, and protective devices
- Wiring insulation and cable management
- Festoon systems or conductor bars
- Pendant stations and cab controls
- Limit switches and emergency-stop circuits
- Motor starting and speed control
- Availability of electrical replacement parts
- Compatibility with the plant’s electrical system
A VFD and electrical panel upgrade may provide smoother acceleration and deceleration, better speed control, and less mechanical shock. The result depends on correct motor selection, drive configuration, braking strategy, installation, and commissioning.
4. Production and Duty Requirements
A crane that was adequate for one shift may not be suitable for expanded production. Review both current and expected future use:
- Rated load: The maximum load the crane is designed to lift
- Actual lifted load: The typical weight of the material being handled
- Below-the-hook device weight: Beams, magnets, grabs, or other attachments that contribute to the suspended load
- Lift frequency: The number of lifts per hour or shift
- Average travel distance: Hoist, trolley, and bridge movement per cycle
- Lifting height: Required hook travel and available headroom
- Speed requirements: Hoisting and traveling speeds needed by the process
- Duty classification: Based on load spectrum and operating frequency
- Operating environment: Heat, dust, moisture, corrosive materials, or hazardous areas
The rated load must account for the load and any relevant lifting attachment weight. A 10-ton process load lifted with a 1-ton below-the-hook device does not represent the same requirement as a 10-ton total suspended load.
Practical Modernize-or-Replace Decision Table
| Finding | Modernization May Be Appropriate When… | Replacement Should Be Strongly Considered When… |
|---|---|---|
| Bridge girders | An assessment confirms adequate condition and remaining suitability | Cracking, severe corrosion, permanent deformation, or widespread fatigue is found |
| Runway | Alignment and condition can be corrected within a reasonable scope | Major runway or building modifications are unavoidable |
| Hoist | The existing hoist can be replaced without extensive structural changes | Required capacity, lift, or duty cannot be supported by the bridge |
| Controls | The main problems are obsolete panels, wiring, or fixed-speed controls | An electrical upgrade requires rebuilding most systems without resolving other limitations |
| Capacity | The current rated capacity remains adequate | Production requires a significant, verified capacity increase |
| Duty | New mechanisms can support the projected workload | The existing structure was not designed for the required load spectrum or frequency |
| Parts | Critical legacy components can be replaced with supported designs | Multiple proprietary systems are obsolete and difficult to integrate |
| Downtime | Work can be completed in planned phases | Repeated retrofit stages would cause more disruption than one replacement outage |
| Future facility plan | Crane geometry still matches the process | Bay layout, hook coverage, headroom, or automation needs have fundamentally changed |
Compare Total Cost, Not Just Equipment Price
The economic comparison should include direct cost, downtime, operating risk, and future maintenance. A lower equipment price does not necessarily produce a lower total project cost.
Direct Project Costs
- Engineering and site survey
- New mechanisms, controls, or complete crane
- Removal of old equipment
- Freight and lifting equipment
- Building or runway modifications
- Installation and electrical work
- Inspection, testing, and commissioning
- Operator and maintenance training
- Initial spare parts
Indirect and Lifecycle Costs
- Planned production downtime
- Risk of schedule overrun
- Emergency repair exposure
- Parts availability
- Maintenance labor
- Energy use
- Repeated troubleshooting
- Future upgrade limitations
- Remaining service suitability
- Cost of another major project within the planning horizon
Simple Indexed-Cost Example
Assume a plant uses cost units rather than currency during preliminary evaluation:
| Cost Category | Modernization | Replacement |
|---|---|---|
| Equipment and engineering | 58 | 100 |
| Installation and enabling work | 7 | 15 |
| Estimated downtime impact | 18 | 40 |
| Initial project impact | 83 | 155 |
In this simplified example, modernization reduces the initial project impact by 72 cost units, or approximately 46%. However, the calculation is incomplete until the plant estimates the retained structure’s remaining suitability, maintenance risk, and probability of needing another major intervention.
Lifecycle cost = Project cost + Downtime cost + Expected maintenance cost + Risk allowance − Residual value
Use the same analysis period, production assumptions, and discount method for both options. All cost figures should come from site-specific proposals and plant financial data.
Illustrative Application Scenario
Consider a double-girder overhead crane serving a fabrication bay. Production is moving from one shift to two, while the crane experiences intermittent contactor faults, rough starting, and increasing difficulty obtaining electrical parts.
An inspection finds that the bridge and runway may remain suitable, subject to engineering confirmation, but the hoist controls and travel drives are outdated. The plant does not need additional rated capacity or a different span.
In this situation, a focused modernization could include:
- A replacement wire rope hoist selected for the revised duty
- New electrical panels and protective devices
- VFD control for hoisting and travel motions
- Radio remote control with an appropriate operating procedure
- Replacement or refurbishment of worn travel components
- Runway alignment correction where necessary
If the same plant required a substantially higher load, greater hook coverage, major automation, or a different runway arrangement, complete replacement could become the more practical choice.
This scenario is illustrative only. The correct decision would depend on verified structural calculations, inspection findings, applicable standards, installation conditions, and financial assumptions.
Why Work With Guanhui Crane?
Guanhui Crane can review project requirements for crane modernization and retrofit applications, including:
- Heavy-duty wire rope hoists
- End trucks and travel components
- VFD and electrical panel upgrades
- Radio remote control conversions
- Modernization configurations based on existing crane conditions
For projects where replacement is more appropriate, buyers can also review Guanhui Crane’s double-girder overhead crane options.
A technical proposal should be based on verified dimensions, operating data, structural condition, installation constraints, and applicable project standards. Site inspection, local engineering approval, installation responsibilities, and compliance requirements should be confirmed for each project.
Frequently Asked Questions
How do I know whether an old crane bridge can be retained?
A qualified inspection and engineering assessment should review deformation, corrosion, fatigue indicators, welds, connections, wheel loads, runway condition, previous repairs, and operating history. Visual appearance alone is not enough.
Does a VFD upgrade reduce mechanical wear?
A correctly engineered VFD system can provide smoother acceleration and deceleration, which may reduce shock loading. Results depend on the motors, brakes, mechanical condition, drive settings, and operating process.
When is full crane replacement usually the better option?
Replacement should be considered when the structure is unsuitable, capacity or geometry must change substantially, the runway requires major reconstruction, or modernization would retain too many high-risk legacy systems.
Should the crane’s rated load equal the material weight?
Not necessarily. The suspended load may include the material and a below-the-hook device such as a magnet, grab, or lifting beam. The complete lifting arrangement must be considered.
Which standards apply to an overhead crane modernization?
Requirements depend on the project country, crane type, application, and owner specifications. Consult applicable national regulations, recognized crane standards, electrical codes, and qualified local engineers before finalizing the design.
The right overhead crane modernization vs. replacement decision depends on structural condition, future duty, electrical obsolescence, maintenance exposure, installation constraints, and the financial impact of downtime. A sound bridge and runway may justify targeted upgrades, while structural limitations or major process changes may make complete replacement more economical over the equipment lifecycle.
